Pictures of your speaker system

Discussion in 'Speakers' started by Cspirou, Nov 6, 2015.

Tags:
  1. Polemarkos

    Polemarkos Almost "Made"

    Contributor
    Joined:
    Oct 16, 2018
    Likes Received:
    314
    Trophy Points:
    63
    Location:
    Holland, MI
    I've had most of this setup for years but have only ever used it for TV/movie watching/PS5 with the kids. I decided to make an effort with speaker positioning and holy shit this sounds pretty great now. I'm sitting 9' from speakers that are 9' feet apart, and about 4' into the room. Room setup could be improved w/ speakers on the short wall but my wife is adamant that the TV stays where it is. I'm still able to manage a decent center image, but imaging/staging is definitely better from the left channel than the right, which is open to the rest of the basement.


    Ethernet>>iFi Zen Stream via Roon>>Yggdrasil LIM via USB>>Denon X3500 in 'Pure Direct' mode as preamp>>Adcom GFA 555 i.e. the one Nelson Pass Designed>Polk LSiM 707. The SVS PB2000 and the center channel are off. I think I'm going to grab a Mercury V3 as a better streamer and call it good.

    This is the native response at listening position via the HouseCurve app with a UMIK1. I made some quick convolution filters w/ cuts only to normalize the response through 350 hz and it's very satisfying.


  2. charles hidalgo

    charles hidalgo New

    Joined:
    Nov 23, 2019
    Likes Received:
    78
    Trophy Points:
    13
    Location:
    California
    Decware T6 listening....
    [​IMG]

  3. Chris1967

    Chris1967 Friend

    Pyrate
    Joined:
    Oct 3, 2015
    Likes Received:
    103
    Trophy Points:
    33
    Location:
    Greece
    Revel Ultima Salon 1
    ASR Emitter 1 Exclusive
    Lenco TT (modified) and Electronic PSU
    ASR Basis Exclusive Phono
    Rockna Wavedream DAC
    Ian Canada RPi (Gentooplayer) Streamer
    Rpi Gentooplayer Music Server
    DimDim Audiophile Switch
    TorusPower TOT MAX (for DAC/Streaner/Server)
    Power Cables and Speaker Cables Signal Projects
    Neotech Interconnects (Sahara/Nemoi)
    Neotech Ethernet cables

    This system always pleases me, no matter what my mood or time of the day/night. Astonishing detail, separation, imaging and extension.

    • Epic Epic x 5
    • Like Like x 2
    • List
  4. Zimmer266

    Zimmer266 Facebook Friend

    Contributor
    Joined:
    Nov 1, 2020
    Likes Received:
    198
    Trophy Points:
    33
    Location:
    Maine
    This system has been great fun.

    MMF 1.5 with Ortofon 2M Black, Darlington Labs MP-7
    CXN V2, with optical to the dac. Coaxial from the Rotel RCD-951.
    LTA Aero (showing Holo in pic)
    Conrad Johnson 17LS2
    Conrad Johnson MF2275
    Vandersteen 2ceSig
    SW-51+, Sennheiser HD650

    • Like Like x 5
    • Epic Epic x 1
    • List
  5. Puma Cat

    Puma Cat Friend

    Pyrate Contributor
    Joined:
    Sep 7, 2017
    Likes Received:
    1,048
    Trophy Points:
    93
    Location:
    East Bay, CA
    I owned a CJ Premier 17LS preamp, and it’s one of the loveliest and most musical preamps I’ve ever heard, so kudos on that. If I may make a suggestion for your consideration: you should pull the speakers further away from the front wall (that is, the wall behind the speakers) and also pull them further apart. From your photo, they appear to be too close to the front wall and not far enough apart. Try it and see what you think. Cheers.

  6. edzyy

    edzyy New

    Joined:
    Mar 6, 2019
    Likes Received:
    50
    Trophy Points:
    13
    Location:
    New York
    [​IMG]

  7. artur9

    artur9 Almost "Made"

    Joined:
    Sep 6, 2016
    Likes Received:
    367
    Trophy Points:
    63

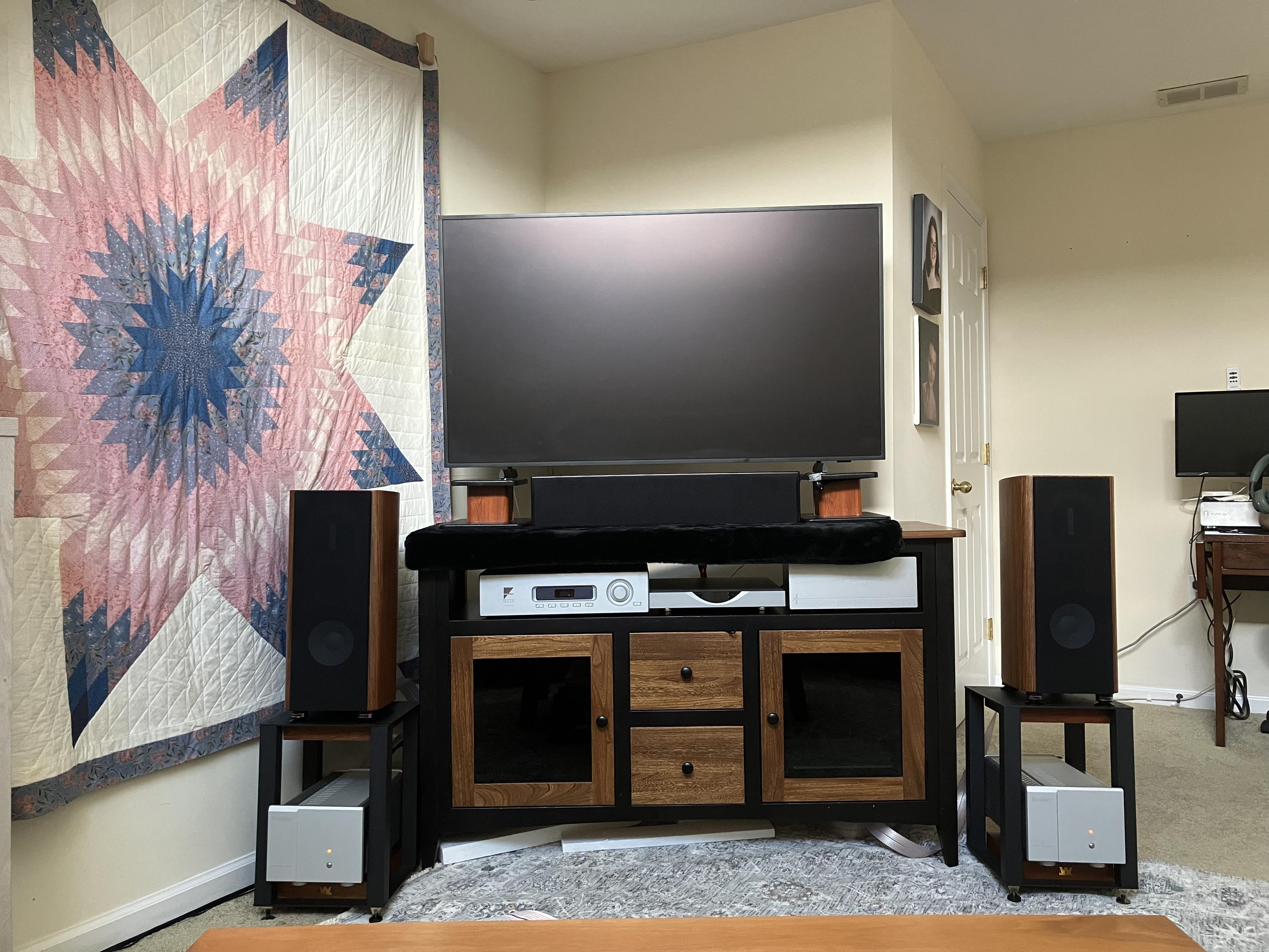

    I'm supposed to be downsizing but I can't help myself.
    I got these Wharfedale Linton stands and then I found a Boulder monoblock that fit just about perfectly into it. Linn Klimax DS/1 -> Ayre K-5xe -> Boulder 850s -> Philharmonic BMR Monitors.

    Best sound I've had in years. I should have taken a picture of the literal million dollar system in the store I bought my monoblocks from. Next time for the speaker porn thread (wilsons, dcs, d'agostino system).

    [​IMG]

  8. Thad E Ginathom

    Thad E Ginathom Friend

    Pyrate
    Joined:
    Sep 27, 2015
    Likes Received:
    15,537
    Trophy Points:
    113
    Location:
    India
    Looks wonderful. Must be a bit hard to balance, with one speaker next to the wall and the other with lots of space?

  9. ogodei

    ogodei Friend

    Pyrate
    Joined:
    Feb 9, 2016
    Likes Received:
    3,046
    Trophy Points:
    93
    Location:
    Chicago
    That's an acoustic quilt right there, no probs :) And its a TV setup, the dialog in unintelligible anyway.

  10. Thad E Ginathom

    Thad E Ginathom Friend

    Pyrate
    Joined:
    Sep 27, 2015
    Likes Received:
    15,537
    Trophy Points:
    113
    Location:
    India
    Oh yeah... I neglected to count the number of points on the star, so I did not realise that it was acoustic.
    ;) :D.

    It's very pretty :)

    • Like Like x 4
    • heart heart x 1
    • List
  11. artur9

    artur9 Almost "Made"

    Joined:
    Sep 6, 2016
    Likes Received:
    367
    Trophy Points:
    63
    Thanks!

    It's not too bad, the BMR's wide dispersion seems to help. The quilt also helps a great deal, as do the covers on the TV cabinet and coffee table.

    Going by Anthem ARC's measurements, the left does have more "bass bloat" but room correction software deals with that easily.

    The real issue is that the speakers are too close together and nothing to be done for that. If I put that right speaker where "it's supposed to be" it's right in the middle of the the paths to the other rooms. I'd have to shift the TV over by something like 3-4 feet. Doorways prevent a better setup, too.

  12. artur9

    artur9 Almost "Made"

    Joined:
    Sep 6, 2016
    Likes Received:
    367
    Trophy Points:
    63
    My wife made it! Took a very long time.

    Had I known, I would have had her use rockwool instead of cotton batting ;)

    • heart heart x 2
    • Like Like x 1
    • Epic Epic x 1
    • List
  13. Armaegis

    Armaegis Friend

    Pyrate BWC
    Joined:
    Sep 27, 2015
    Likes Received:
    8,599
    Trophy Points:
    113
    Location:
    Winnipeg
    I have the opposite with my right speaker by a window, and the left speaker in the middle of the room. Volume seems balanced overall, but my left/right spatialization is off. When I listen to this video below with the snares panning from left to right (starts at 4:20), my left side is pretty much a blur until it gets to the middle, but my right localization side is fine.



    @artur9 I'd be curious if you hear the opposite.

  14. Kernel Kurtz

    Kernel Kurtz Friend

    Pyrate Contributor
    Joined:
    May 19, 2018
    Likes Received:
    1,917
    Trophy Points:
    93
    Location:
    Winnipeg, Canada
    Sorry to be captain obvious, but a room divider or some sort of barrier next to the open speaker will make a big difference even if it does not extend much beyond the front of the drivers.

  15. zonto

    zonto Friend

    Pyrate Contributor
    Joined:
    Sep 30, 2015
    Likes Received:
    5,243
    Trophy Points:
    113
    Location:
    Boston, MA
    Maybe a GiK absorption panel on a movable stand? Then it could be hidden in a nearby closet when the serious listening is done.

  16. Armaegis

    Armaegis Friend

    Pyrate BWC
    Joined:
    Sep 27, 2015
    Likes Received:
    8,599
    Trophy Points:
    113
    Location:
    Winnipeg
    Maybe if I show my partner Soup's setup again, that will shift expectations and I could get away with a rolling panel... but somehow I doubt it o_O

    • Like Like x 6
    • Agreed, ditto, +1 Agreed, ditto, +1 x 1
    • List
  17. artur9

    artur9 Almost "Made"

    Joined:
    Sep 6, 2016
    Likes Received:
    367
    Trophy Points:
    63
    Is it the serious listening with the panel and daily listening without?

    I had contemplated putting the right speaker on wheels to roll it to the right position for serious listening....

  18. Polemarkos

    Polemarkos Almost "Made"

    Contributor
    Joined:
    Oct 16, 2018
    Likes Received:
    314
    Trophy Points:
    63
    Location:
    Holland, MI
    Thanks for the suggestion - I thought room dividers were far more expensive than they appear to be so I might order one today. I'm also considering a movable diffuser panel on a dolly that I could slide up against the wall when not in use. Just yesterday I sold those Polk speakers and moved in the Audio Note AN-E I picked up last week and the soundstage width issue is not as pronounced. The AN-E sit less than a foot from the front wall toed-in to the listening position and their horizontal dispersion doesn't seem quite as good as the Polk's so they don't throw as wide of a stage in the first place.

    I'm also considering using two 2X4' foam diffusers attached to a piece of stiff canvas or other lightweight backing material that I can hang from hooks screwed into the rafters in front of the television for long listening sessions. If anyone has any experience with whether this move would be helpful I'd appreciate it. I can't really discern an improvement in imaging if the TV is angled up/down/sideways etc. so I'm inclined to think the potential benefit is largely in not having to look at the television.

  19. Polemarkos

    Polemarkos Almost "Made"

    Contributor
    Joined:
    Oct 16, 2018
    Likes Received:
    314
    Trophy Points:
    63
    Location:
    Holland, MI
    I ordered a 4-panel room divider this morning so will update the thread with impressions. I'm in the process of consolidating my setups to one system. The speakers are AN-E Spe HE. Once I sell the Klipsch Cornwall I have in another room I'll move an Audio Note Cobra amp in and an ANK L3 phono stage. The speakers are 10.5' apart and 10.8' from my listening position and cross just behind my head.

    The grey boxes and the two amplifiers on the bottom rack are half of a custom built Audio Kinesis Swarm system I picked up at an exceptional discount recently. The other two subs are in the back left corner and to the right of the listening position. I currently have them crossed-over at around 35 hz. I just started working at integration yesterday and am trying to get everything tuned by ear before taking any measurements, building convolution filters etc. We're also putting a new sectional down there this summer which will require moving things around / more absorption in the room so I'm not going to get too attached to anything at this point. I wish I could orient the whole room lengthwise but the TV has to be where it is etc.

  20. yotacowboy

    yotacowboy McRibs Kind of Guy

    Pyrate Contributor
    Joined:
    Feb 23, 2016
    Likes Received:
    12,428
    Trophy Points:
    113
    Location:
    NOVA
    Home Page:
    Nice pickup! I probably spend about 70% of my time with my AN-E’s (kit 3, so pretty much the same as SPE/HE) with a single SVS SB-1000 turned off. When the sub is turned on, it’s only crossed over at 30Hz using a 12dB slope. The AN-E’s really do reach down quite convincingly with good corner placement.
